What is a Plastic Vent Grille?

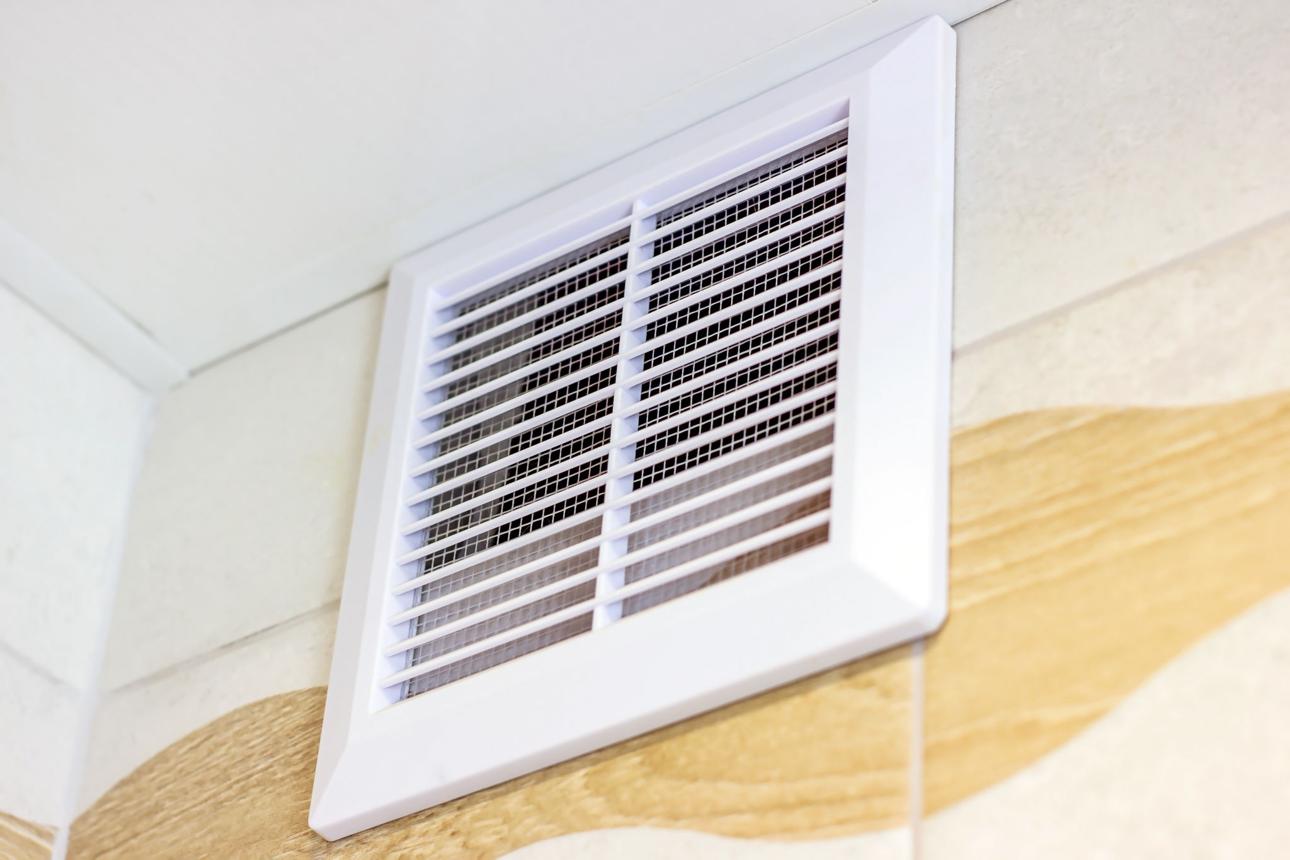

Plastic vent grilles are ventilation accessories installed at the end of ventilation systems，which are generally manufactured using injection molding. They mainly consist of an outer frame and louvers, and some models also include a protective mesh. It has the following functions.

Ventilation

Its main function is to guide and regulate airflow, deliver fresh air to the room, and create a comfortable spatial environment. From a technical standpoint, plastic ventilation grilles control the distribution and speed of airflow to achieve effective ventilation through their unique structural design, such as the angle and density of the blades.

Protective Filtering

The width of the gaps between the louvers determines the minimum size of pollutants that can be blocked. A standard gap width of 10mm effectively prevents insects, dust, and other external pollutants from entering the interior space. A filter screen on the back of the grille provides even more effective protection, preventing insects such as mosquitoes, flies, cockroaches, and small spiders from entering the air duct or equipment.

Decorative Function

Ventilation grilles have various styles, including vertical grilles, openwork mosaics, and mesh patterns. The color options also include single colors such as white, gray, and black, or patterns like wood grain, stone texture. They can blend with interior design styles, decorate the interior environment. Installed on the ceiling, they not only provide ventilation but also facilitate the maintenance of equipment in the space above.

Advantages of Plastic Vent Grille?

Lightweight

The density of plastic is approximately one-sixth that of metal, which makes it lightweight and significantly reducing transportation and installation costs. It is especially suitable for weight-sensitive locations like ceilings. Its Installation is effortless, because of plastic is easy to drill holes and can be installed using screws.

Waterproof and Corrosion-resistant

Plastics have excellent waterproof and corrosion-resistant properties and will not rust when exposed to water. Unlike metal grilles, they do not require electroplating or spraying for rust prevention. Their properties make them suitable for use in humid or corrosive environments, such as bathrooms, kitchens, and outdoor poster areas.

Low Cost

Plastic is an inexpensive industrial material, its raw material price lower than other metal materials. Injection molding is suitable for mass production, resulting in low unit costs and consequently lower selling prices. For metal grilles of the same size and function, plastic vent grilles are often 30%-60% cheaper.

Anti-Condensation Design

Plastic has extremely low thermal conductivity, and its surface temperature is close to indoor temperature. In high-humidity environments such as air conditioner vents, the condensation will not accumulate and drip, preventing damage to equipment or fitment below.

Application of Plastic Vent Grille

Plastic gratings have a wide range of applications, covering almost all places that require ventilation, heat dissipation, and protection.

Residential Ventilation

Plastic ventilation grilles perfectly complement interior decoration by virtue of their lightweight advantage. They avoid the drawbacks of metal materials such as rust and paint chipping, making them become an excellent choice for home ventilation systems. Plastic vent grilles can be used for central air conditioning vents on the ceilings of bedrooms, living rooms, and studies. Their one-piece molded structure prevents dust accumulation and makes them disassembly and cleaning easy. Their advantages are even more pronounced in special settings like kitchens and bathrooms. Kitchens are prone to generating lampblack, but plastic ventilation grilles are resistant to lampblack adhere and can be directly washed with water. Bathrooms and toilets are damp and enclosed spaces, and plastic ventilation grilles are waterproof and moisture-proof, preventing mold growth. It can quickly remove moisture and unpleasant odor, keeping the bathroom clean and tidy.

Commercial Buildings

Commercial buildings have a large number of visitors, so there emphasis on safety, efficient ventilation and also consider aesthetics. Plastic ventilation grille has a high degree of customization and its flame-retardant level meets various public building fire safety standards. It can perfectly match the decoration style and functional requirements of commercial spaces. In large commercial complexes such as shopping malls and supermarkets, large-size plastic ventilation grilles can meet high ventilation demands. In hotels and restaurants. Oil-resistant and easy-to-clean grilles are suitable for kitchens and food processing rooms. In public corridors and lobbies, you can customize grille styles to match the overall decoration style.

Industrial Facilities

Industrial facilities commonly existing problems include dust, corrosive substances, and heavy equipment loads. So there having strict demands on ventilation components. Plastic ventilation grille can be used for overall ventilation in manufacturing workshops and environments with volatile chemicals. Its feature of corrosion resistance prevents rust and damage, significantly reducing replacement and maintenance costs. In addition, when it is combined with dust filters, plastic ventilation grille provides dust protection and optimize the workshop working environment. Plastic ventilation grilles can also be used for heat dissipation in industrial equipment, preventing foreign objects from entering the equipment and ensuring stable operation. Moreover, plastic have insulating properties, which can eliminate the risk of electric leakage.

Agriculture Environments

Agricultural environments have high humidity, significant temperature differences, and a high concentration of harmful gases. Plastic gratings are rust-free and corrosion-resistant, so they are suitable for greenhouses, livestock farms, and warehouses. In greenhouses, the UV-resistant and rust-free of plastic vent grille can withstand sun and rain. It can stably regulate temperature, humidity, carbon dioxide concentration in the greenhouse and provide a suitable environment for crop growth. At the same time, it prevents rodents and birds from entering the greenhouse and damaging crops. In livestock farms, harm gases such as ammonia and hydrogen sulfide are easily generated. Plastic ventilation grille can remove these gases in time, blowing fresh air to livestock and protecting livestock’s health. In grain warehouses, plastic ventilation grille can achieve natural ventilation and reduce the situation of mold growth due to moisture.

How to Choose Plastic Vent Grille?

Vent Size

The size of the plastic ventilation grille should be matched with the size of the air vent. Before purchasing, it’s necessary to distinguish between the opening size and the outer frame size. The opening size refers to the length and width of the ventilation opening in the wall or ceiling, while the outer frame size refers to the length and width of the grille’s overall outer edge. If it’s be used directly on a circular air vent duct, the diameter of the duct needs to be determined. When selecting the grille size, the outer frame size should generally be 20-30mm larger than the opening size to ensure that the outer frame completely cover the edge of the opening.

Airflow Requirement

The ventilation effect is an important reference factor in choosing air grilles. The grille opening area determines ventilation efficiency. Under the same installation size, Under the same installation size, the larger the opening area, the smaller the wind resistance and the greater the ventilation volume. For applications requiring high airflow, such as equipment cooling or main ventilation outlets, it is recommended to choose parallel louvers. For auxiliary ventilation or decorative vents, you can choose models with a moderate opening area based on aesthetic needs. It’s also important to note that if a dust filter or dust proof cotton is added to the grille, the effective ventilation area will decrease by 10%-20%. When selecting, you need reserve margin to avoid insufficient ventilation.

Space Size

Choose the appropriate size and quantity based on the space size. For bedrooms and living rooms, the normal air exchange rate is 1-2 times per hour, and conventional rectangular air grille such as 100×600mm and 150×800mm are preferred. Kitchens and bathrooms are small areas but have a high frequency of air exchange per hour, so 100-150mm round ventilation grilles are preferred. In shopping malls, office buildings and other densely populated and large areas, large-sized air vents and more grilles are required to ensure uniform ventilation throughout the area and eliminate ventilation dead zones

Budget Requirements

The main plastic materials used to make plastic gratings are ABS, PP, and PC. They differ in performance and cost. ABS material has advantages of high strength, strong impact resistance, a smooth surface, and corrosion resistance. Generally, ABS material is the most common material for plastic vent grilles and suitable for most applications. Its price is moderate. PP plastic offers excellent cost-effectiveness and is lightweight, which is commonly found in low-cost models. If you need a more economical product and the environment doesn’t require high product quality, you can choose PP grille. PC material has excellent transparency, extremely high impact strength (approximately 2-3 times that of ABS), good heat resistance, and superior UV resistance, but it is more expensive. If the environment is harsh, PC grille is the best choice.

How to Find the Best Plastic Vent Grille Supplier?

Manufacturing Capability

Plastic vent grilles are typically manufactured using injection molding technology. A professional supplier should have its own injection molding machines and mold development capability. If the plastic vent grille is produced independently by the company and has obtained international certifications , it indicates that the quality of the product can be guaranteed.

Customization Support

A reliable supplier should be able to provide customization options such as: custom grille sizes to match specific duct openings, different materials such as ABS, PP, or PC ,additional accessories such as insect mesh or airflow dampers, customized colors.

Supply Capability

For large projects or distribution businesses, stable supply capacity is very important.When evaluating a supplier, you should check the number of injection molding machines，the production capacity of plastic vent grilles and average production lead time.A supplier with stable manufacturing capacity can ensure timely delivery and consistent product quality for repeat orders.

After-Sales Service

A trustworthy supplier should provide professional after-sales support for plastic vent grille products. This include installation guidance technical，consultation for ventilation applications，support for product replacement or quality issues.

Aosun is your reliable partner. The plastic grille we produce has passed international CE, RoSH, SAA and ISO certifications, and supports OEM customization. AOSUN has factories and advanced production facilities, with a daily output of up to several thousand pieces, and the delivery period is controlled within 10 days. Aosun provides online technical support, which can guide your installation, testing and maintenance online. If there are any quality issues with the product, we offer a return and exchange service.
